Product Description

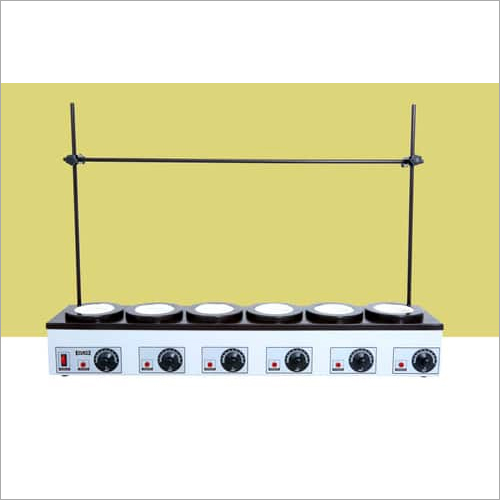

Extraction Mantle

We are offering excellent quality Extraction Mantle to our esteemed patrons, which is precisely engineered by our team of dexterous personnel. The offered mantle is made with glass fiber which provides uniform heating to the flasks of different sizes. Further, this mantle has built-in controls and is provided with separate control for each position to maintain and regulate separate conditions to different flasks at a time. Our offered Extraction Mantle is used for the purpose of solid liquid extractions in laboratories and is extensively used in pharmaceutical industry.


  • Rust resistance
  • User friendly design
  • Excellent performance
  • Robustness


This mantle is really helpful in heating numerous round bottom flasks simultaneously (for extractions, distillations, and digestions). All Soxhlet extraction mantles are fitted with individual energy regulators with indicator light for each heating surface, allowing liquids with different boiling points to be heated alongside each other. The robust construction allow continuous operation of the units as required by routine extraction tests.

Cat No Flask Capacity in ml Number of recess TotalWatts@220-240 V Dimension LxBxH (mm ) Weight Kgs.
AV-SM-01 250 3 450 525 175 150 4.5
AV-SM-02 500 3 600 645 205 185 6
AV-SM-03 1000 3 900 675  215 185 6.5
AV-SM-04 250 6 900 1025 175 150 7
AV-SM-05 500 6 1200 1225  205 185 8.3
AV-SM-06 1000 6 1800 1300 215 185 9

Technical Specifications:

Capacity 3 or 6 Recess
Thermal Insulation Ceramic Fibre
Energy Controller 3 or 6 built in Simmerstat
Max.Temperature up to 450 Degree
Fuses Provided
Case Construction Aluminum Powder Coated
Support Rods Provided
Connecting Bosses Provided
Flask fixing clamps Not Provided
Mains Chord 3 Core 2 Meter Long
Mains Power 220-240 V Single Phase A/C
Replacement Element Provided

Optional: Complete set of Glass parts with fixing clamps can be provided on request.
